Client Projects

Client Projects
Case1

The customer's production line was used to produce nylon with fiberglass. The equipment utilizes a strand pelletizing method, but the particles cannot evaporate the vapor due to the high fiberglass content and low temperature. The moisture content of the particles did not reach the required standards.

According to customer feedback, our technicians recommended a jacket spiral conveying dryer. Through double clamp heating effect of the disk vibration heat conduction and thermal radiation, high drying efficiency makes the moisture content of nylon with fiberglass products to meet the standard requirements. Compared with some of the customers who put the materials in a mixing pot to dry, the energy consumption of the jacket spiral conveying dryer is lower.

Want to learn more about steam jacket spiral conveying dryer, please click here.

Steam Jacket Spiral Conveying Dryer
Client Projects
Case2

The customer uses a suction machine to transport materials, but the material generates a large amount of friction in the conveying process, so it results in a large amount of powder buildup. Additionally, the elbow pipe is easy to wear and cannot cool the material properly. After the customer switched to our spiral vertical vibrating conveyer, the transmission window is wider, and can be combined with the hopper return pipe to mix materials. Because of the spiral structure, the material stays longer and the cooling effect is better.

Want to learn more about Spiral Vertical Vibrating Conveyer, please click here.

Bulk Material Vibrating Spiral Conveyor
  • The traditional air knife was used by the customer

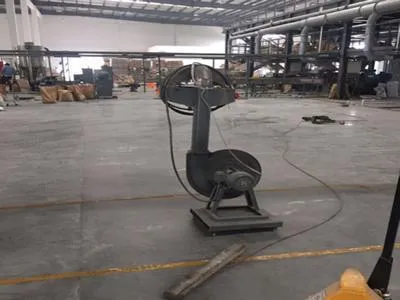

    The traditional air knife was used by the customer
  • The dewater air knife we improved is adopted by the customer

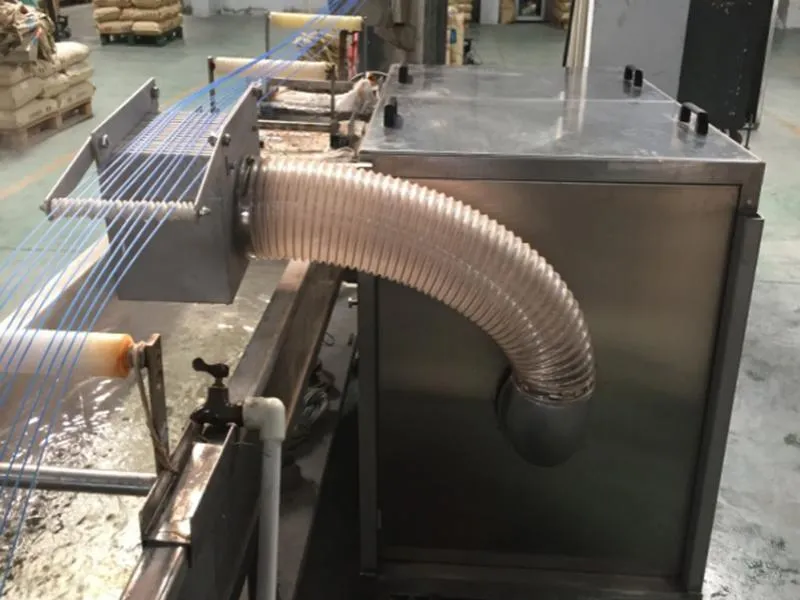

    The dewater air knife we improved is adopted by the customer
Case3

We have a client in Suzhou, China, who uses a traditional air knife to dehydrate plastic materials. The short contact time and low wind speed of the feed strip and air knife result in low dewatering efficiency. In addition, the long - term contact of wind knife is easily worn down. Our air knife drying system has a large suction area, large wind speed and more than 99% dehydration efficiency thanks to its abrasion resistant ceramic suction head.

Want to learn more about air knife drying system, please click here.

Air Knife Dewatering Unit
  • Client Projects
  • Client Projects
Case4

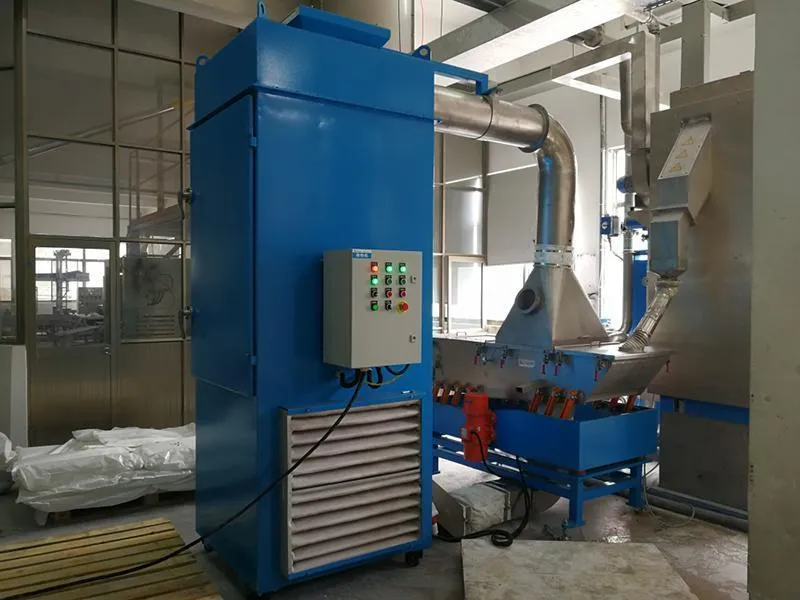

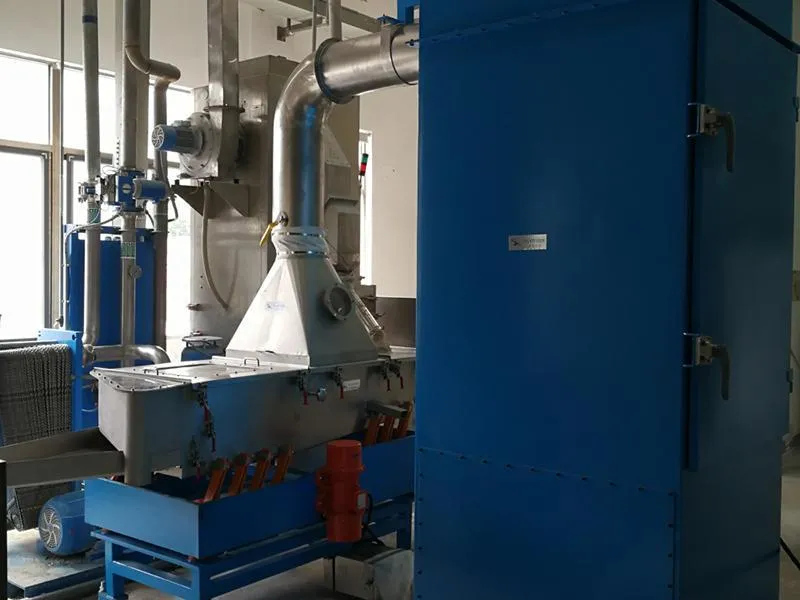

One of our customers who produces PMMA acrylic products was concerned, because their PMMA acrylic became relatively crisp, which cause a lot of powder buildup. We designed and developed a vibrating sieves and screen with powder removal function for the customer, and the product now produces almost no powder after the powder removal.

Want to learn more about multifunction vibrating sieves and screen equipment, please click here.

Multifunction Vibrating Sieves and Screen Equipment
  • Client Projects
  • Client Projects
Case5

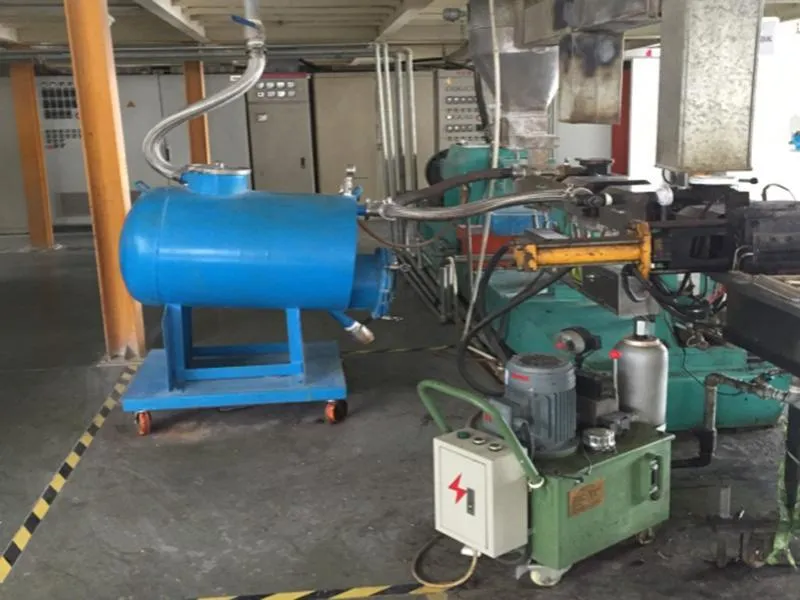

The structure of the vacuum system used by the client is complex and inconvenient to clean up. But it is convenient for customers to clean and maintain after using our vacuum cleaning station.

Want to learn more about vacuum cleaning station, please click here.

Vacuum Station

Looking for a solution to improve your efficiency of plastic production ?

We provide you with one stop solutions answering your needs for efficient plastic processing and increased production capacity.
