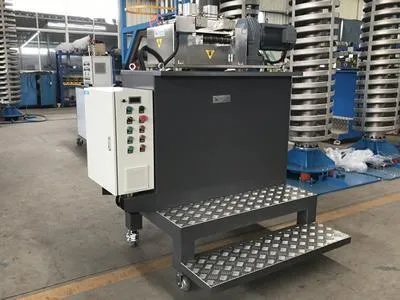

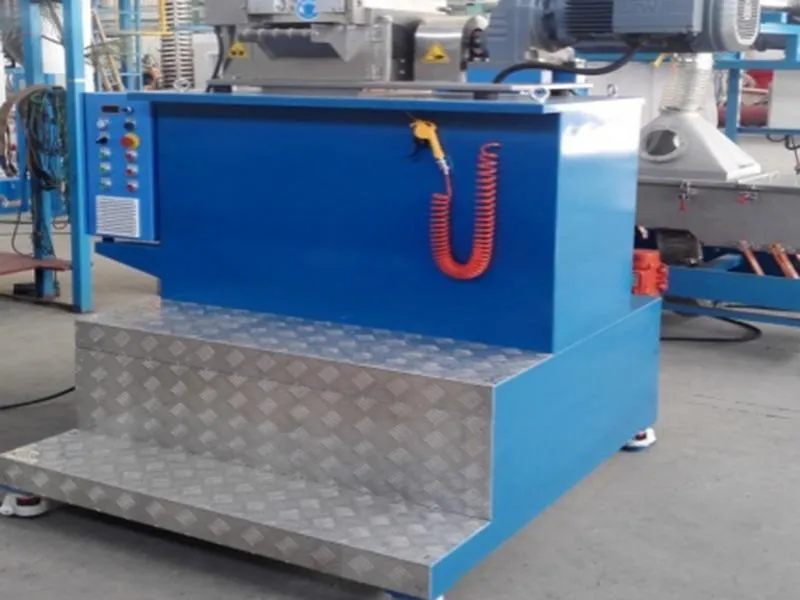

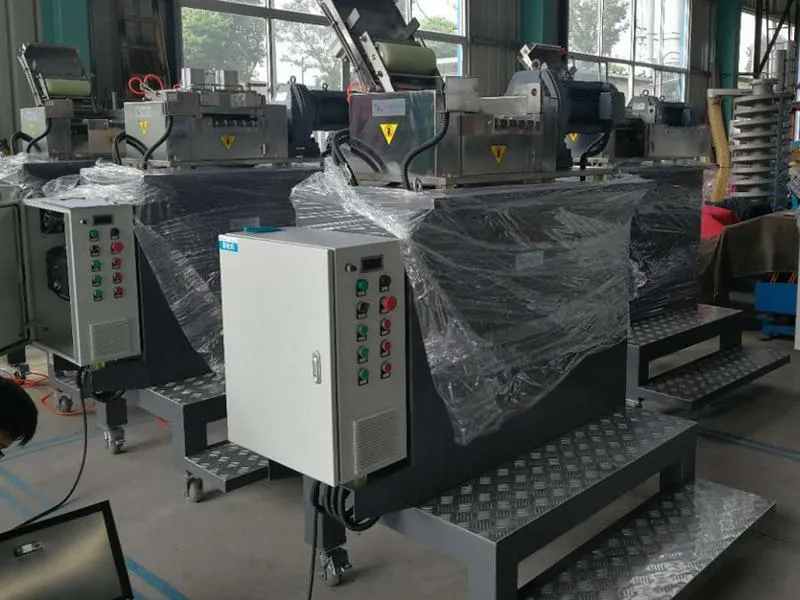

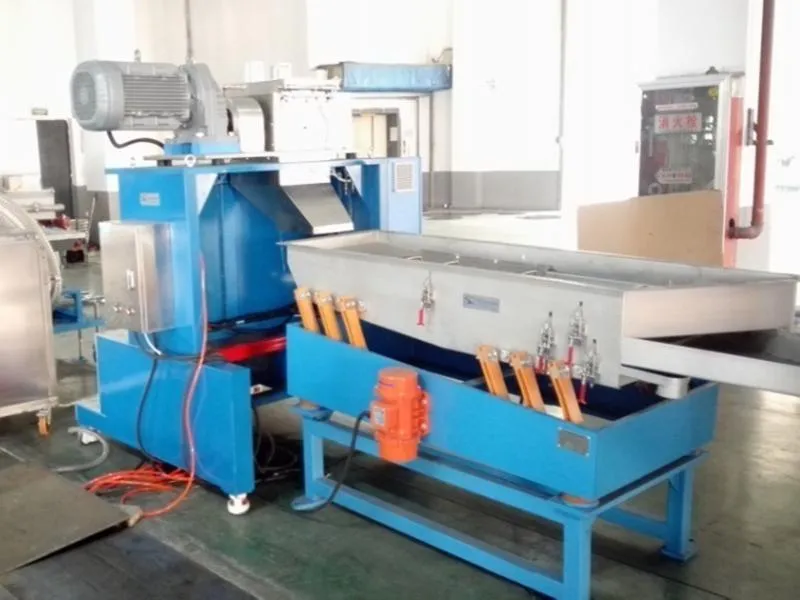

Strand Pelletizer

Applications
The gantry pellet pelletizer is suitable for cutting materials after the extrusion and thermoplastic drawing of thermoplastic elastomers, high filling materials and glass fiber composite materials. The pelletizer is capable of cutting material into different sizes.

Request a Quote

Parameter

Type	BR125/GR125	BR240/GR240
Cutting Rotor (mm)	φ180*125	φ180*240
Strand Speed (m/min)	83	83
AC Motor	3phase/380V/50HZ	3phase/380V/50HZ
Drive Motor (KW)	5.5/7.5	7.5/11
Driver Control	Frequency Converter	Frequency Converter
Max. number of strands (pcs)	30	60
Pellet Size (mm)	φ3*3	φ3*3
Material of cutter	High-speed Steel/ Hard Alloy
Overall dimension(LWH) (mm)	110611951600	110613151600
Gross Weight (kg)	468	495

Features

Low noise and excellent stability.
It is safe and easy to clean
The particle length can be customized according to the user's requirement, and the particle standard is φ3*3.
The particles are not at risk of contamination because the pelletizing process is carried out in a separate space.
Due to its internal lock design, the machine can only be turned on under specific, secure environmental conditions, thus ensuring operator safety.
