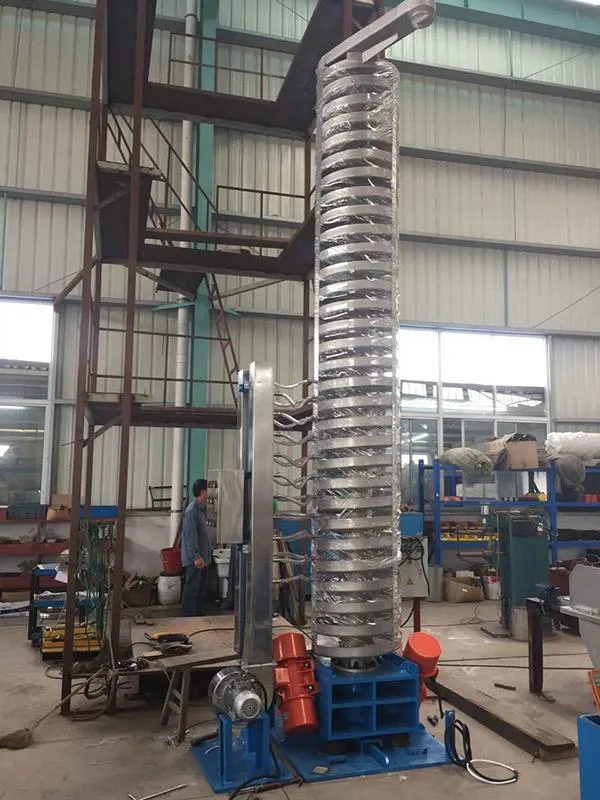

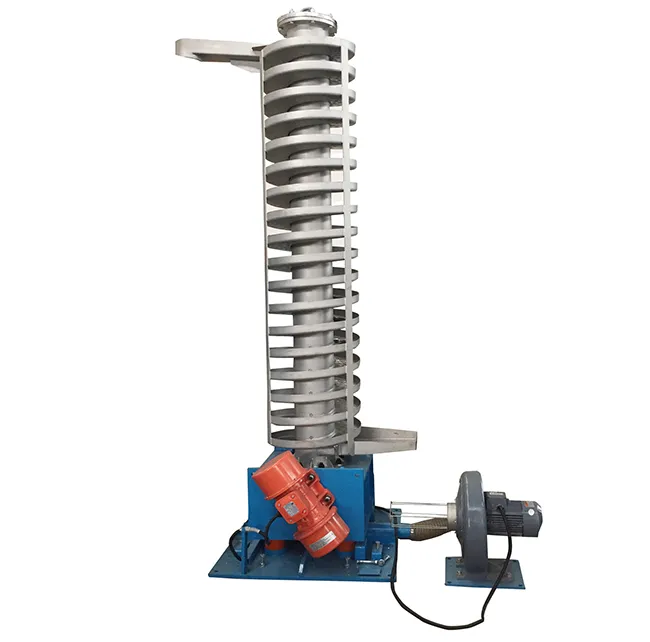

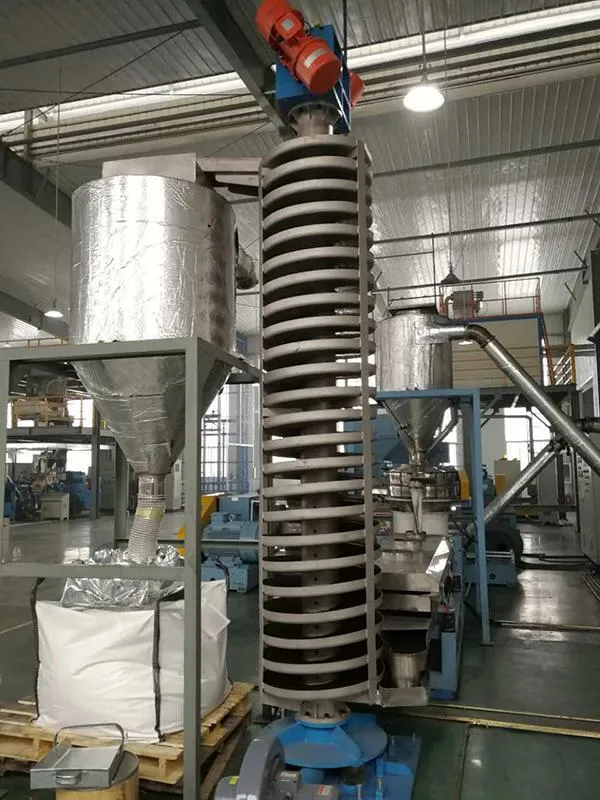

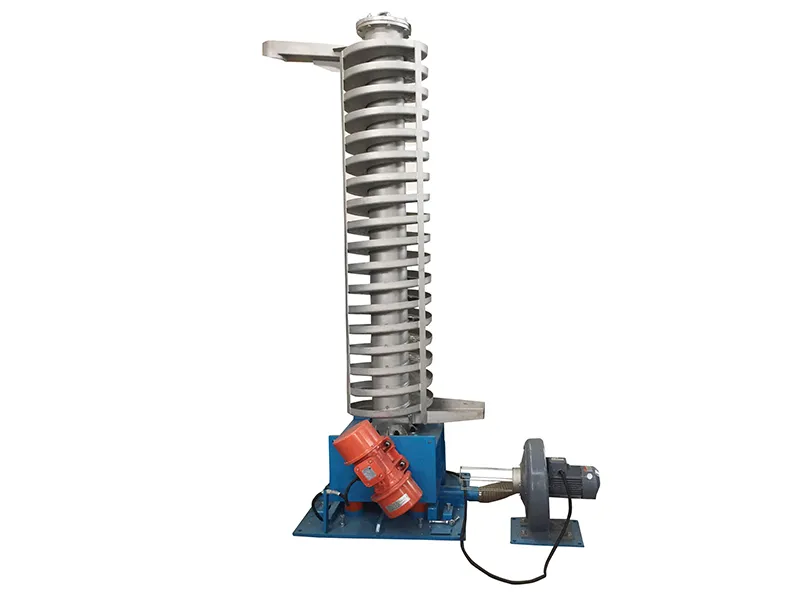

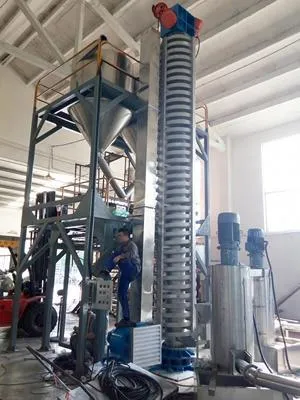

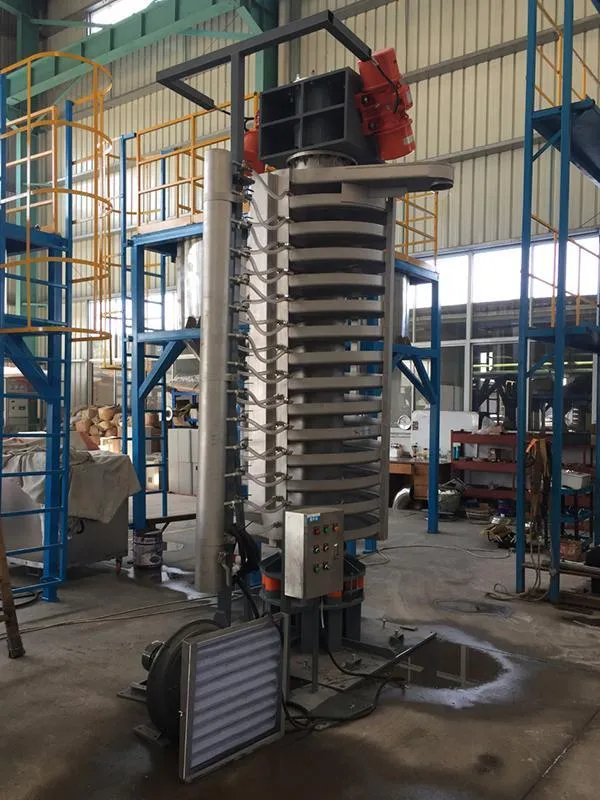

The air-cooling spiral vibrating conveyer uses its blower to dry and cool the material through its holes on its central column, which is suitable for the cooling and drying of high temperature materials in modified plastic production lines. We can provide vibrating conveyers with a throughput of 500-4000kg/h.
Vibrating spiral conveyors are standard equipment for many industries to elevate bulk materials. It can convey, dry and cool plastics granules, rubber granules, chemical and pharmaceutical intermediates, metal salts, welding powder, glass batch, catalysts, abrasives and ash as well as milk powder, powdered coffee, tea, nuts, nutrients and cereals.
|Nominal Throughput (kg/h)||500||1000||2000||3000||4000|
|Inlet Height (mm)||640||700||700||700||800|
|Outlet Height (mm)||4500||5500||6500||8500||5000|
|Motor Power (Kw/3phase)||0.75*2||1.7*2||2.3*2||2.9*2||5.0*2|
|Cooling Model||Fan blow|
|Resident Time (min)||4-6||5-7||6-8||7-9||6-7|
