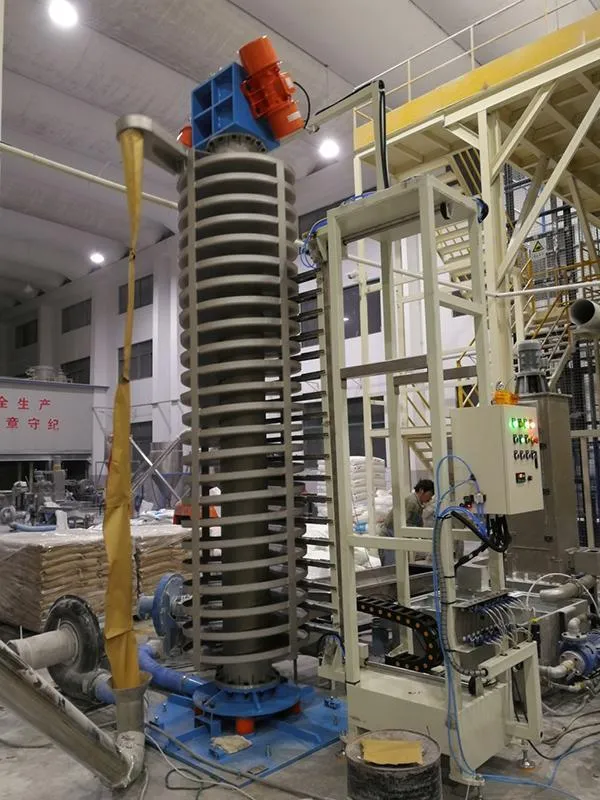

Continuous Vibrating Elevator and Dryer

Continuous Vibrating Elevator and Dryer

Applications
The continuous vibration dryer is suitable for heating and drying of materials in a continuous drying operation.

Operational Principle
This vibration spiral elevator is designed with heating function. The material is heated using the jacketed vibratory plate during the long-distance vibration transmission, thus ensuring the water vapor dries faster with a better drying effect.

Request a Quote
Parameter
SCT05-30D SCT10-30D SCT20-30D SCT30-30D SCT30-70D
500-600 800-1000 1000-2000 3000-4000 3000-5000
Ø600 Ø800 Ø1000 Ø1300 Ø1600
600 640 700 700 700
3000 3000 3000 3000 7000
0.55*2 1.1*2 1.7*2 2.3*2 6.2*2
Hot water, steam, heating plate, thermal oil
3-4 3-4 3-4 3-4 7-8
Features
  • The continuous vibrating elevator and dryer achieves drying, lifting and conveying.
  • There is no extrusion of the mechanical force during the conveying process, thus ensuring it meets requirements for non-destructive transport occasions.
  • Small footprint
  • The heat conduction medium heats the materials using the jacket and solves issues caused by a low energy efficiency of the hot air in the drying of a traditional boiling bed. This leads to a higher, better effect than hot air drying.
  • There has no accumulation of material, and it will dry evenly due to material movement during continuous rolling vibration.
  • Heating mediums include infrared, hot water, steam and heat transfer oil, and the heating temperature can be controlled.
  • The feeding section is cooled using a jacket to avoid damping.
  • Because there is no external forced hot air entry, impurities that can contaminate materials in the hot wind are avoided.
  • The materials can be made for top infeed and bottom outfeed or bottom infeed and top outfeed both of which utilize a customized height, according to customer needs.
  • A removable thermal insulation jacket structure can be designed in order to improve the thermal efficiency.
  • The continuous vibration dryer can be equipped with closed intake and exhaust structure to avoid environmental pollution of powdery materials.
  • It can add nitrogen gas protection to prevent materials from oxidizing and deteriorating during high temperature work.
  • It can add a wear-resistant ceramic veneer layer to adapt to the long-term transportation of high hardness products.
  • Dry and lifting of different material types can be continued after a quick cleaning due to the easy cleaning of the machine.
  • It adjusts the conveying speed and output of materials to meet the drying time requirements for different materials by adjusting the vibration frequency and the excitation force.
Benefits
  • The energy consumption is significantly reduced and the comprehensive benefits are significantly improved.
  • The drying process conditions are flexible and can be automatically controlled.
  • The material quality is improved and stable after drying.
  • Continuous operation makes the operation simple and efficient.
  • Improve the working environment of workers.
