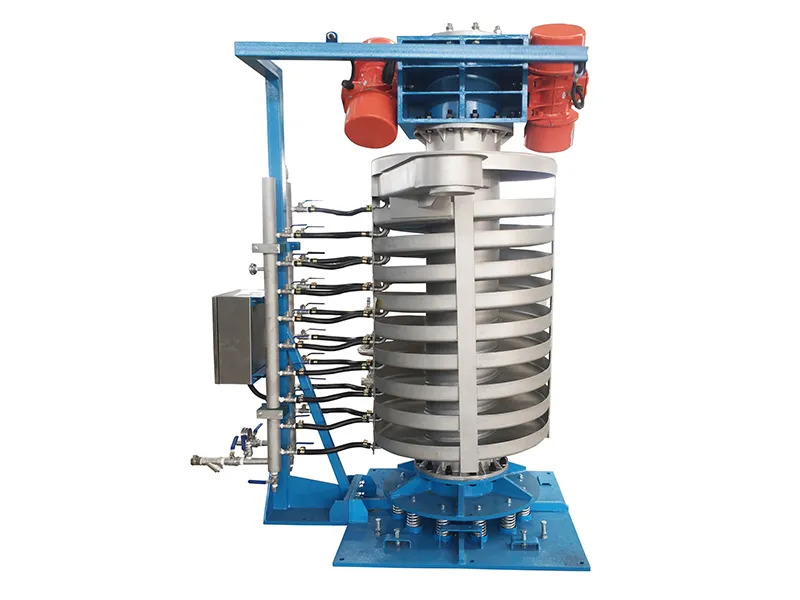

Water Cooling Spiral Vibrating Conveyor

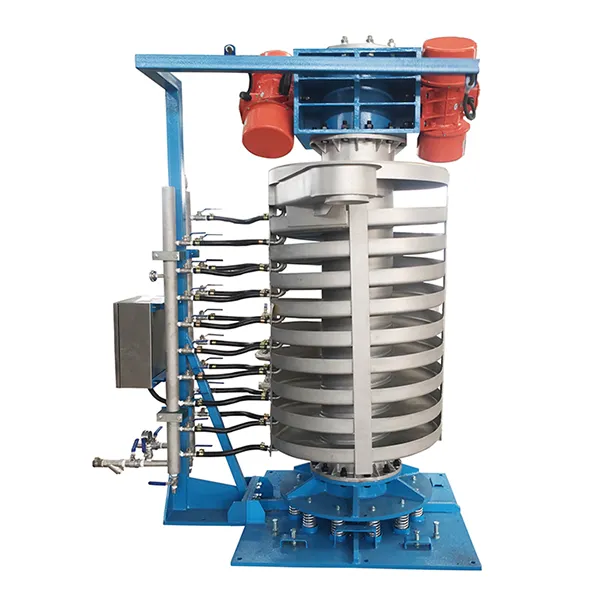

Water Cooling Spiral Vibrating Conveyor

Applications
The water cooling spiral vibrating conveyor is designed for quick cooling, drying, and lifting of materials. Its nominal throughput is 500-3000kg/h and is suitable for cooling transportation of high temperature sensitive materials.

Material types
Our vibrating spiral conveyor is standard equipment for many industries to elevate bulk materials. It can convey, dry and cool plastics granules, rubber granules, chemical and pharmaceutical intermediates, metal salts, welding powder, glass batch, catalysts, abrasives and ash as well as milk powder, powdered coffee, tea, nuts, nutrients and cereals.

Request a Quote

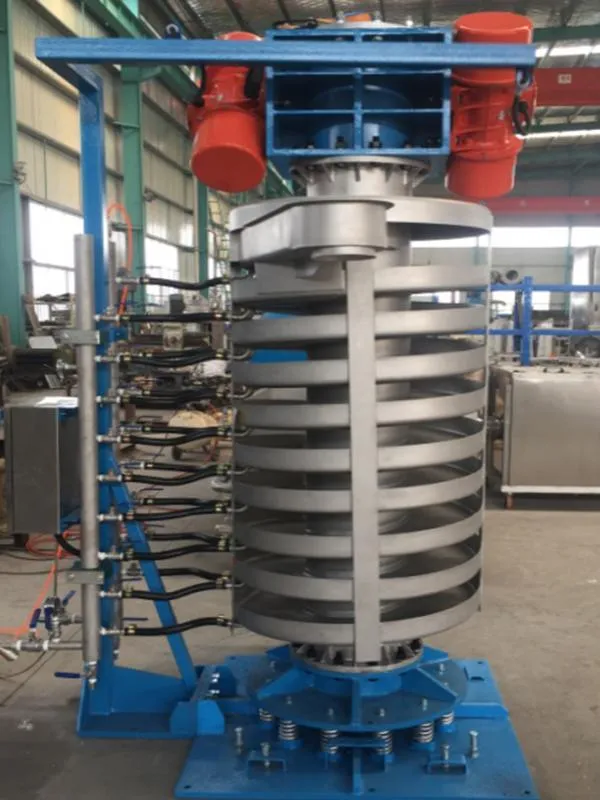

  • Gallery

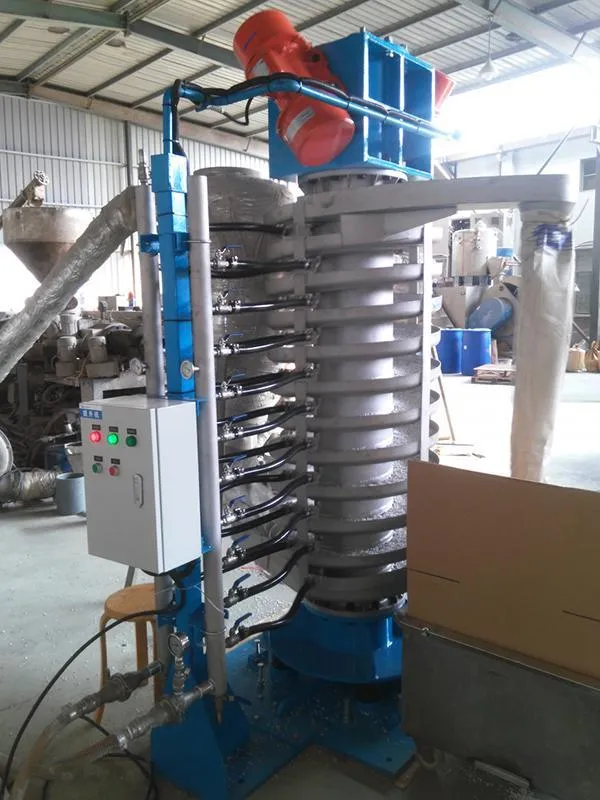

  • Gallery

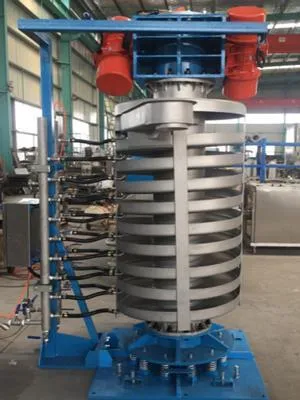

  • Gallery

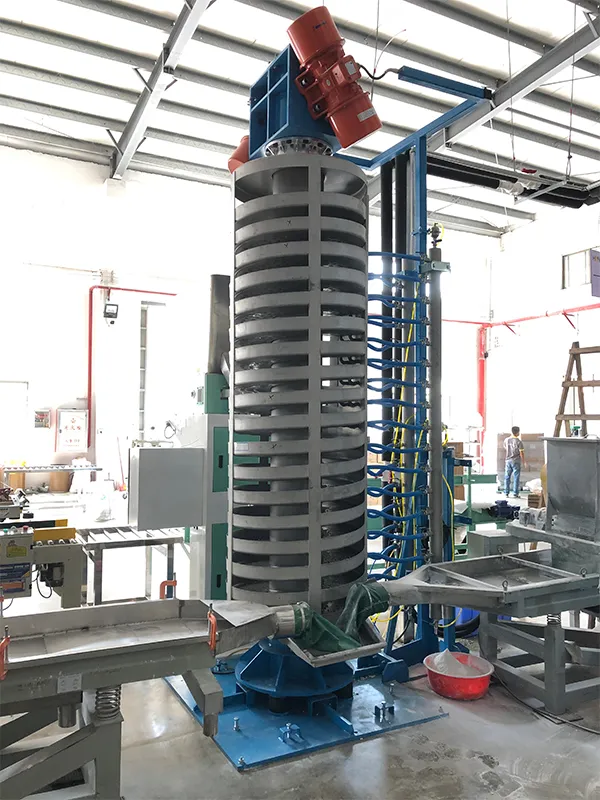

  • Gallery
Parameter
Model SCT08-30W SCT15-16W SCT20-16W
Nominal Throughput(kg/h) 500-800 800-1500 1500-2000
Diameter(mm) φ650 φ850 φ1000
Inlet Height(mm) 500 400 500
Outlet Height(mm) 3000 1600 1600
Motor Power(kw) 1.1*2 1.1*2 1.5*2
Resident Time(min) 2-3 1-2 1-2
How a water cooling spiral vibrating conveyor works

A water cooling spiral vibrating conveyor uses directional vibration to move the bulk material upwards in tiny jumps. During conveying, cooling water will continuously circulate through the double-wall cooling jacket installed at the bottom of the helical trough, reducing material temperature through heat transfer.

In addition, for longer conveying distance, the material residence time can be extended to increase conveying performance while maintaining sufficient cooling. Drying can also be improved depending on the process.

Features

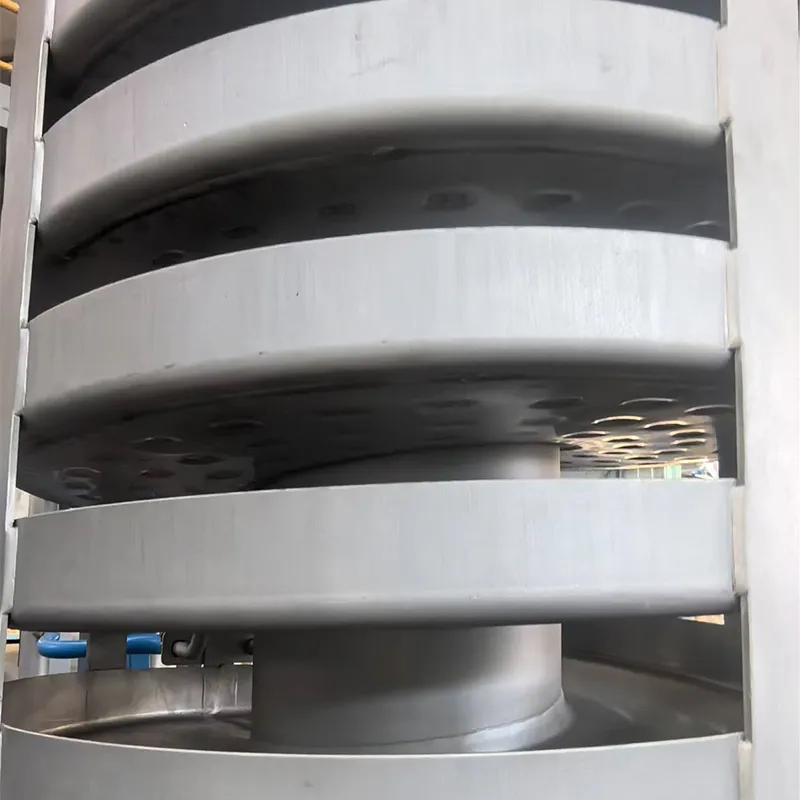

  • The water jacket which is stamped for one time will not deform under the condition of 5 kilograms pressure.

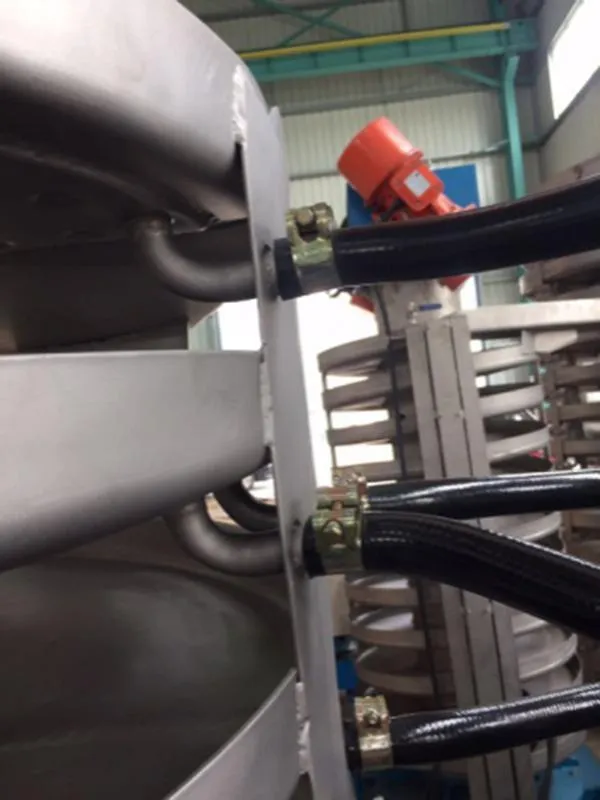

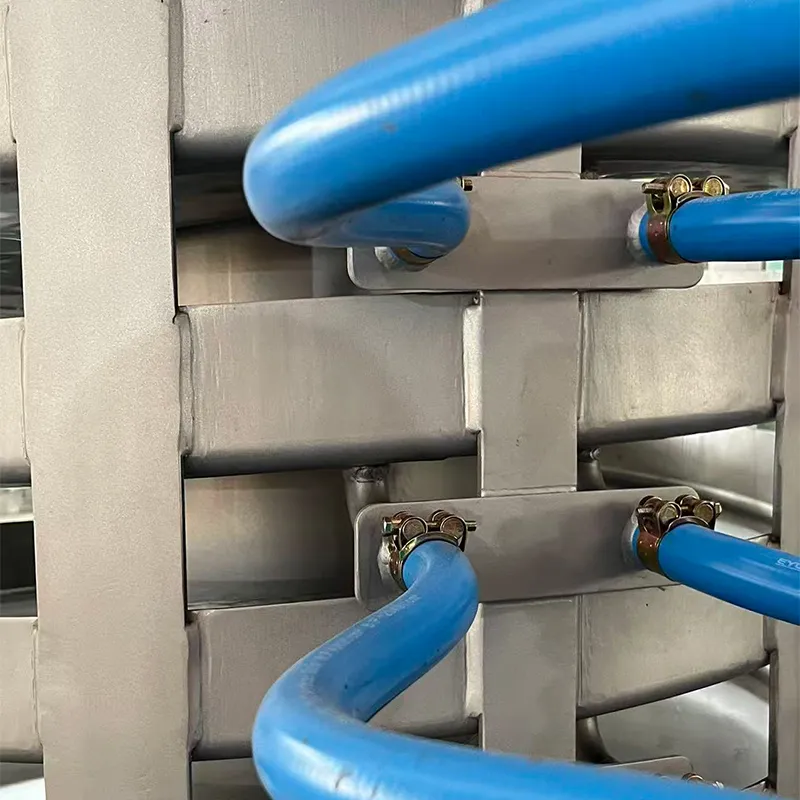

  • The jacket elevator adopts a high-performance composite steam hose, which will not crack under the condition of long term vibration.

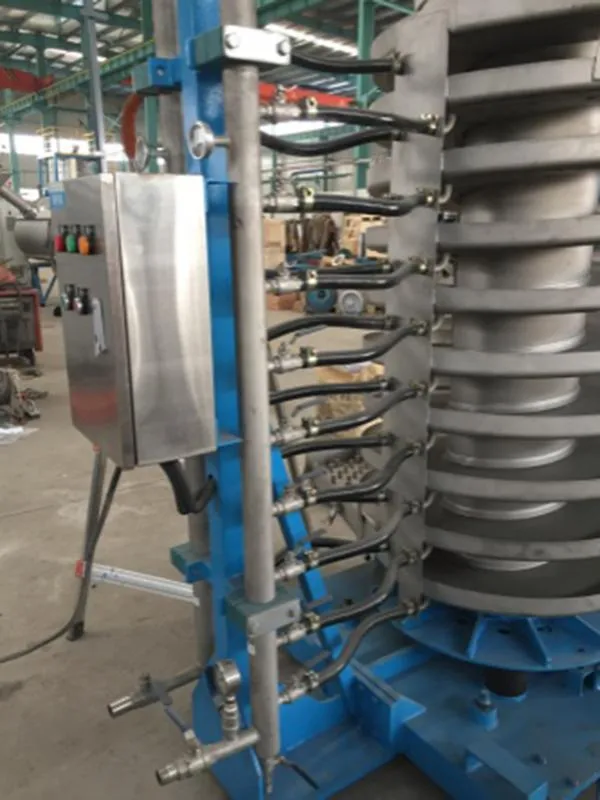

  • The elevator is equipped with in-take tower and outlet tower, and the independent ball valve is used to control the water volume of each interlayer.
  • The water inlet pipe which is configured with high precision filter can prevent impurities of the jacket subsiding because of its precision (0.5-1um).
  • The material conveyor can effectively prevent the buildup of condensation of the equipment under high humidity with the anti-condensation device.
Key Components
Container Mixer
Container Mixer Container Mixer Container Mixer
  • The water jacket, punched and formed through moulding, withstands pressure without deformation.
  • The composite hose withstands long-term vibration without cracking.
  • The water inlet and outlet manifolds are controlled by independent ball valves to adjust the flow rates of each level.

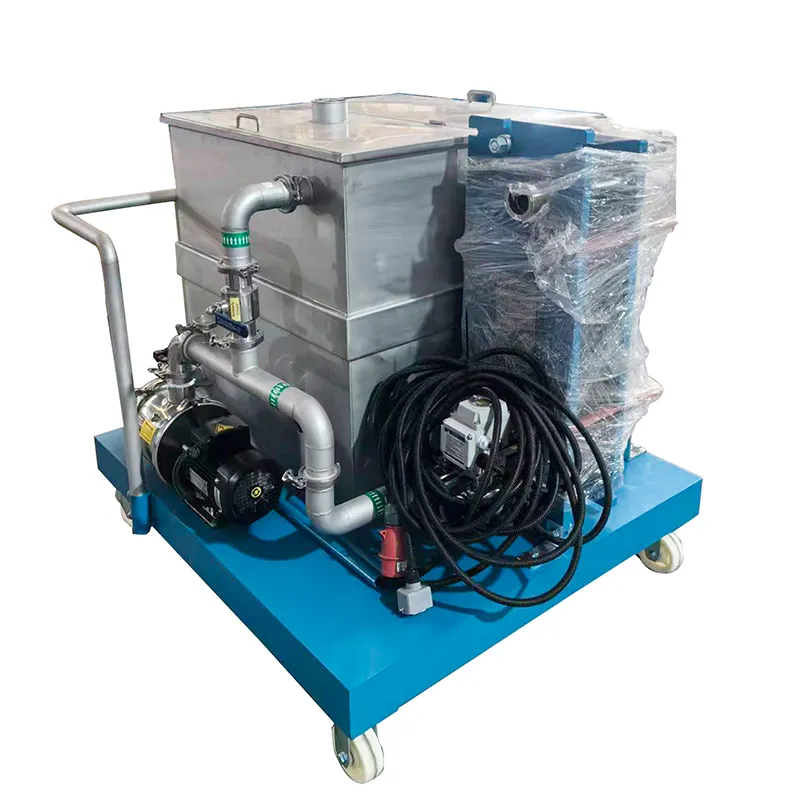

  • Portable water recirculation system for stable water pressure and efficient heat transfer.
