2. Steam Jacket Spiral Conveying DryerCapacity: 500-3000kg/h
  Heat Transfer Medium: steam
  Applications: The steam jacket spiral conveying dryer is designed for continuous transportation, heating, and drying of materails used in the production of engineering plastics.

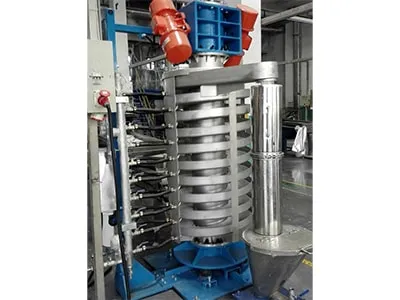

2. Electric Heating Spiral Conveying DryerCapacity: 500-3000kg/h
  Heat Transfer Medium: heat transfer oil
  Heating Pressure: 5 bar
  Applications: The electric heating spiral conveying dryer uses a high heat-conducting oil to heat the materials. The maximum surface temperature of the vibration disk can reach more than 200 degrees. It is suitable for materials with ultra-high temperature heating and drying requirements.
2. Strand Pelletizer The gantry pellet pelletizer is suitable for cutting materials after the extrusion and thermoplastic drawing of thermoplastic elastomers, high filling materials and glass fiber composite materials. The pelletizer is capable of cutting material into different sizes.
2. Pellet Dryer The pellet dryer can effectively devolatilize and deodorize the low-molecular organic residue inside the plastic surface. It is applicable to various modified engineering plastics and rubber products due to its continuous drying, devolatilization and deodorization functions.
2. Continuous Vibrating Elevator and Dryer The continuous vibration dryer is suitable for heating and drying of materials in a continuous drying operation. This vibration spiral elevator is designed with heating function. The material is heated using the jacketed vibratory plate during the long-distance vibration transmission, thus ensuring the water vapor dries faster with a better drying effect.
2. Electric Heating Vertical Vacuum Dryer Presenting our electric heating vertical vacuum dryer, meant to effectively dry goods with high moisture content or demanding temperature processing requirements. In some polymer resins under particular conditions, this novel drier not only accelerates drying and deodorization but also allows solid-state polycondensation.
2. Vacuum Screw Cleaning MachineDesigned to efficiently eliminate resin residue from mixing screws by cutting-edge vacuum carbonization technology, our vacuum screw cleaning machine cleaning method greatly increases the lifetime of your screws by guaranteeing a complete, residue-free, damage-free cleaning process and thereby lowers manufacturing expenses. (ZL 2020202157 Patent No.)
2. Waterjet Screw Cleaning MachineOur waterjet screw cleaning machine is designed to effectively remove debris from mixing screws using a high-pressure water washing technique. Without leaving any residue or blind areas, this reasonably priced solution efficiently removes non-metallic contaminants and carbon layers thereby guaranteeing a complete cleaning down to the metal surface.
2. Spiral Vibratory Elevator Integrated Drying System The parallel vibration conveyance drying & SSP system is used in the plastic production lines for various modified engineering equipment in order to achieve a solid phase polycondensation reaction of polymer materials, as well as improve the viscosity and performance of the products. The heat exchange area can be used to preheat and dry the plastic particles.
2. Industrial Vacuum Drying Machine The design of a closed inlet and outlet structure and fully enclosed heat insulation cover are added to improve the conveying of materials while simultaneously undergoing high efficiency vacuum drying. This makes the system suitable for drying and improvement of various types of plastic particles and powder.
2. Spray Dryer The spray dryer is used to continuously dry viscous powder, liquid and solid particles. It can dry anywhere between 3000-1500kg of material per hour. The continuous cylinder vacuum dryer has an additional spraying function: liquid materials can be sprayed into the vacuum drying system under high pressure.
2. Vibrating Fluid Bed Dryer The vibrating fluid bed dryer achieves low temperature anaerobic drying under vacuum conditions, making it suitable for fast thermosensitive solid materials. We can provide both vertical and horizontal structures according to customer workshop needs.
2. Loss in Weight Feeder The loss in weight feeder is suitable for plastic granules, powders, calcium carbonates, talcum powders, resin membrane powders and other products. It features continuous weighing, measuring and feeding functions. It is used in chemical engineering, engineering plastics, cable, food, medicine, building materials and other fields, with a feeding range of 5-4000l /hr.
